Energy balance

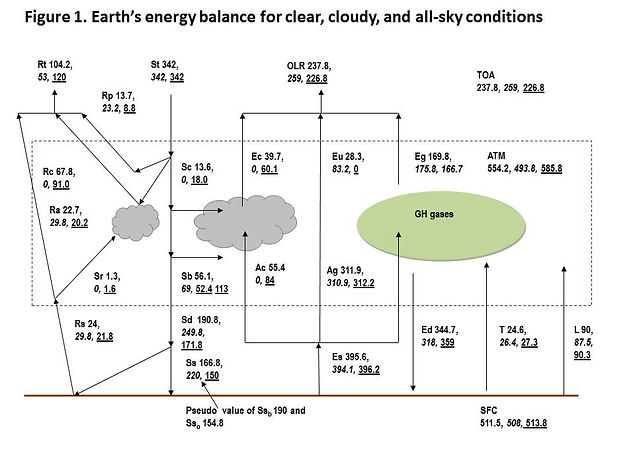

The Earth's energy balance for clear, cloudy, and all-sky conditions is illustrated in Figure 1.



Dr. Ollila graph

This presentation is based on the publications and measurements carried out mainly during the sun cycle 23 (1995-2005). Therefore the solar constant is 1368 Wm^-2. During the present solar cycle this value is close to 1360 Wm^-2.



In this presentation are several new features:
1) The reflected flux Rp by the air,
2) The reflected flux Rc by the clouds,
3) Flux Sr absorbed by clouds - incoming flux is the reflected flux by surface

4) Incoming SW flux Sw absorbed by clouds

5) In coming SW flux Sb absorbed by clear air

6) Upward LW flux Ec emitted by clouds

7) Upward LW flux Eg emitted by cloudless atmosphere.
